Body & hair oil projects
Share the oil blend and viscosity, the desired delivery and your bottle drawing. Review the spray behavior with the finished formula.
A SPECIALIST DISPENSING SOLUTION
Oil-resistant
fine mist sprayers.
Start with a sprayer designed for oil-based formula projects. Review our double-layer seal design, check the bottle connection and evaluate samples with your actual liquid.
Minimum order30,000 pcs
Production lead time35–45 days
Oil resistance depends on the selected materials and your formula. Confirm performance through sample evaluation before bulk production.
BLACK RIBBED COLLARS / CLEAR OVERCAPSMATCH THE SPRAYER TO THE FORMULA
Bring us your application.
We will review the fit.
These are starting points for a product review. The formula, bottle and dispensing requirement decide whether this configuration is suitable.
Essential oil formulations
Tell us the ingredients, dilution and intended use. The selected seal materials must be evaluated with the complete blend.
Formulas that need closer review
If a standard sprayer has leaked, swollen or stopped dispensing, send the details of the issue for a configuration review.
THE FEATURED PRODUCT
Double-layer seal.
A configuration to evaluate.
Explore the existing oil-resistant fine mist sprayer reference, then agree the material selection and dispensing requirements for your project.
- Product reference
- SP-LP-200
- Bottle connection
- Confirm against the bottle drawing
- Dispensing output
- Confirm with the selected configuration and liquid
- Seal design
- Double-layer seal
- Dip tube
- PP dip tube; length to match the selected bottle
Construction follows the owner-confirmed SP-LP-200 drawing. Confirm bottle neck, dip tube length and dispensing output for your assembly.
Full product details
REAL SAMPLES / TWO PRESENTATIONS
Choose the look.
Review the complete assembly.
The sample photographs show black ribbed sprayers and white assemblies mounted on clear sample bottles. Confirm the neck finish, collar style and selected materials for your order.
Black ribbed collar
Black actuator, textured collar, clear protective overcap and dip tube, as shown in the sample photograph.

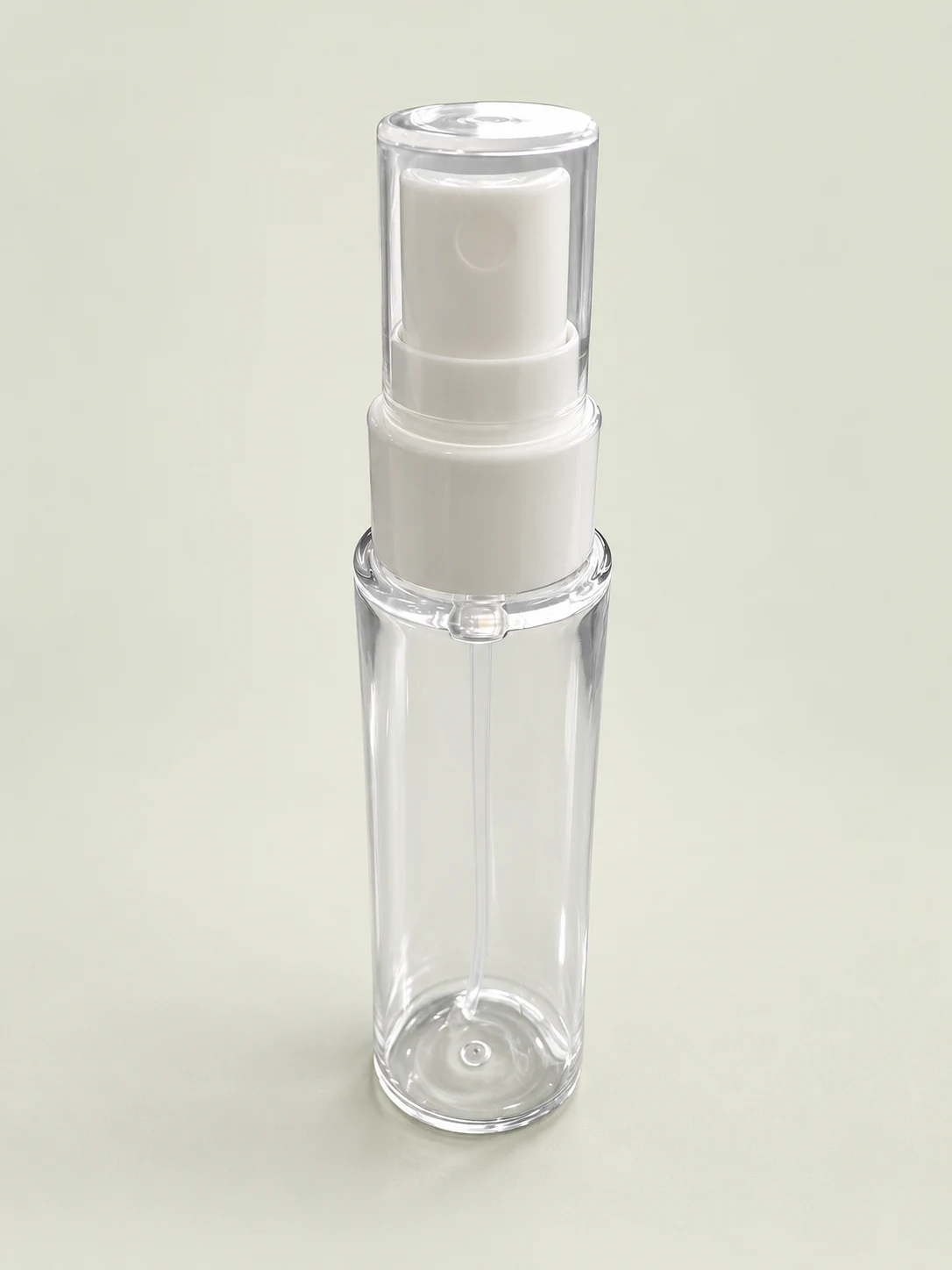

White bottle assembly
White actuator and collar with a clear protective overcap. Bottle-mounted samples help review the visual proportions and dip tube arrangement.
Sample photographs have been retouched with a studio background. Use the agreed drawing and actual samples to confirm dimensions, bottle fit and formula compatibility.
STRUCTURE & MATERIALS
A closer look inside
the SP-LP-200 configuration.

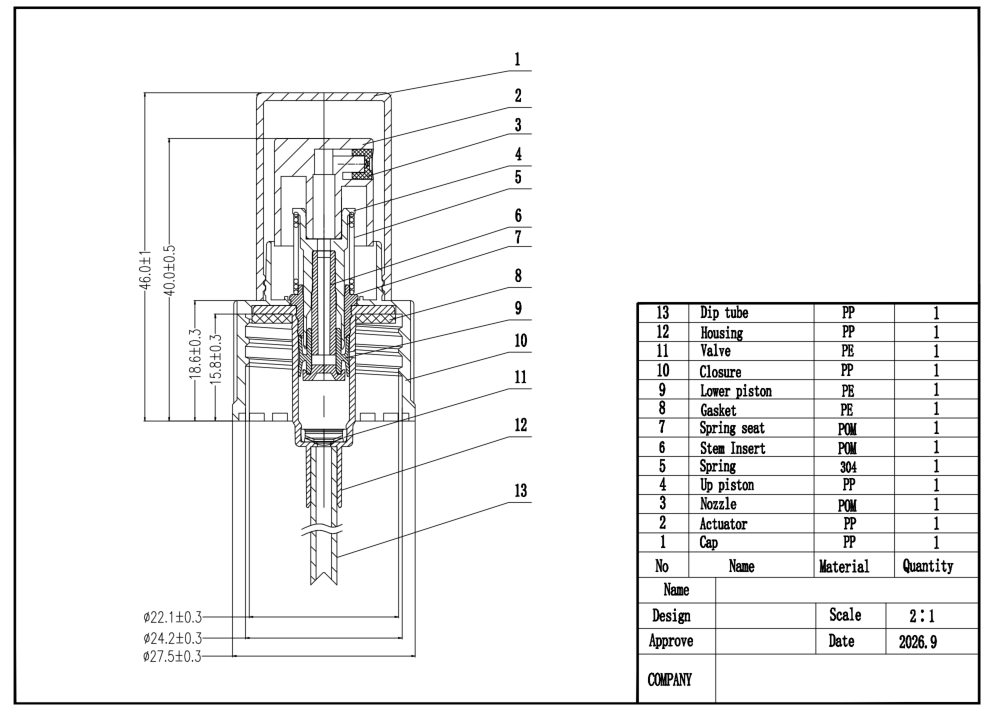

The owner-confirmed SP-LP-200 section drawing identifies 13 components. Use it to discuss material selection, assembly dimensions and bottle fit with our team.
| No. | Component | Material |
|---|---|---|
| 1 | Cap | PP |
| 2 | Actuator | PP |
| 3 | Nozzle | POM |
| 4 | Upper piston | PP |
| 5 | Spring | 304 stainless steel |
| 6 | Stem insert | POM |
| 7 | Spring seat | POM |
| 8 | Gasket | PE |
| 9 | Lower piston | PE |
| 10 | Closure | PP |
| 11 | Valve | PE |
| 12 | Housing | PP |
| 13 | Dip tube | PP |
Quantity: one of each component in this drawing. PP: polypropylene; PE: polyethylene; POM: polyoxymethylene.
Dimensions shown in the drawing
Vertical dimension A46.0 ±1.0 mm
Vertical dimension B40.0 ±0.5 mm
Vertical dimension C16.8 ±0.3 mm
Vertical dimension D15.8 ±0.3 mm
Diameter reference AØ22.1 ±0.3 mm
Diameter reference BØ24.2 ±0.3 mm
Diameter reference CØ27.5 ±0.3 mm
Read each reference against the corresponding callout in the drawing. These body diameters are not bottle thread sizes. This drawing is confirmed for SP-LP-200. The bottle thread designation is not printed on the drawing; confirm the bottle interface before production.
Confirmed construction: PP, PE and POM components with a 304 stainless-steel spring. Review these materials with your formula and confirm samples before ordering.
Discuss the drawing & request samplesFROM FORMULA TO AN APPROVED SAMPLE
Check the complete dispensing assembly.
- 01
Share the formula
Provide the liquid type, ingredient information available for review, viscosity and intended application.
- 02
Confirm bottle fit
Send the neck-finish drawing or bottle sample, fill level and required dip tube length.
- 03
Evaluate samples
Agree how to check leakage, dispensing, spray behavior and storage compatibility using your liquid.
- 04
Approve the order
Confirm the specification, color, quantity, sample approval and production schedule in the quotation.
Agree the evaluation conditions and acceptance criteria for your formula before approving production.
BUYER QUESTIONS
Before you choose
an oil-resistant sprayer.
Will it work with every oil or solvent?
No universal compatibility is assumed. Share the complete formulation so the configuration can be reviewed, and evaluate the chosen assembly with your actual liquid. A fine mist sprayer may not produce a fine mist with every viscosity.
Does the bottle neck size guarantee a fit?
The neck designation is a starting point. Provide the bottle drawing or sample to review the interface, dip tube and sealing arrangement together.
Can I get samples before placing a bulk order?
Yes, request the product configuration you want to review. We will confirm sample availability, preparation and any sample or shipping charges.
What are the MOQ and lead time?
The minimum order is 30,000 pieces and the stated production lead time is 35–45 days. Confirm the configuration, approval steps, schedule start point and shipping separately.
REQUEST A CONFIGURATION REVIEW
Tell us about
your oil-based formula.
Include your liquid type, bottle neck, quantity and desired dispensing behavior. Tell us if you need compatibility samples or are replacing a sprayer that has caused problems.
[email protected]If you cannot share a full formula initially, describe the liquid and the known issue so we can discuss the next step.
Request a quote or samples
Share your requirements so we can review the right configuration. You can also email [email protected].
