MODEL SP-LP-200
Review the available specifications below and request a quotation or samples for your packaging project.
PRODUCT DETAILS
| Specification item | Parameter / detail |
|---|---|
| Model / item no. | SP-LP-200 |
| Cap | PP |
| Actuator | PP |
| Nozzle | POM |
| Upper piston | PP |
| Spring | 304 stainless steel |
| Stem insert | POM |
| Spring seat | POM |
| Gasket | PE |
| Lower piston | PE |
| Closure | PP |
| Valve | PE |
| Housing | PP |
| Dip tube | PP |
| Vertical dimension A | 46.0 ±1.0 mm |
| Vertical dimension B | 40.0 ±0.5 mm |
| Vertical dimension C | 16.8 ±0.3 mm |
| Vertical dimension D | 15.8 ±0.3 mm |
| Diameter reference A | Ø22.1 ±0.3 mm |
| Diameter reference B | Ø24.2 ±0.3 mm |
| Diameter reference C | Ø27.5 ±0.3 mm |
| Minimum order | 30,000 pcs |
| Lead time | 35–45 days |

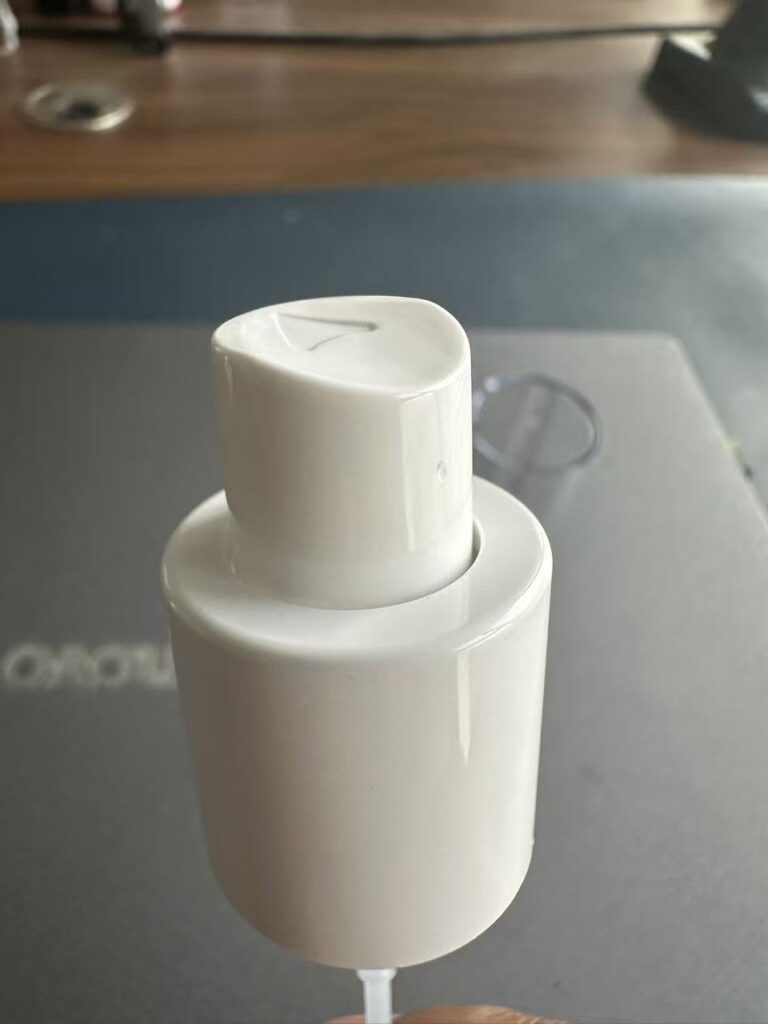

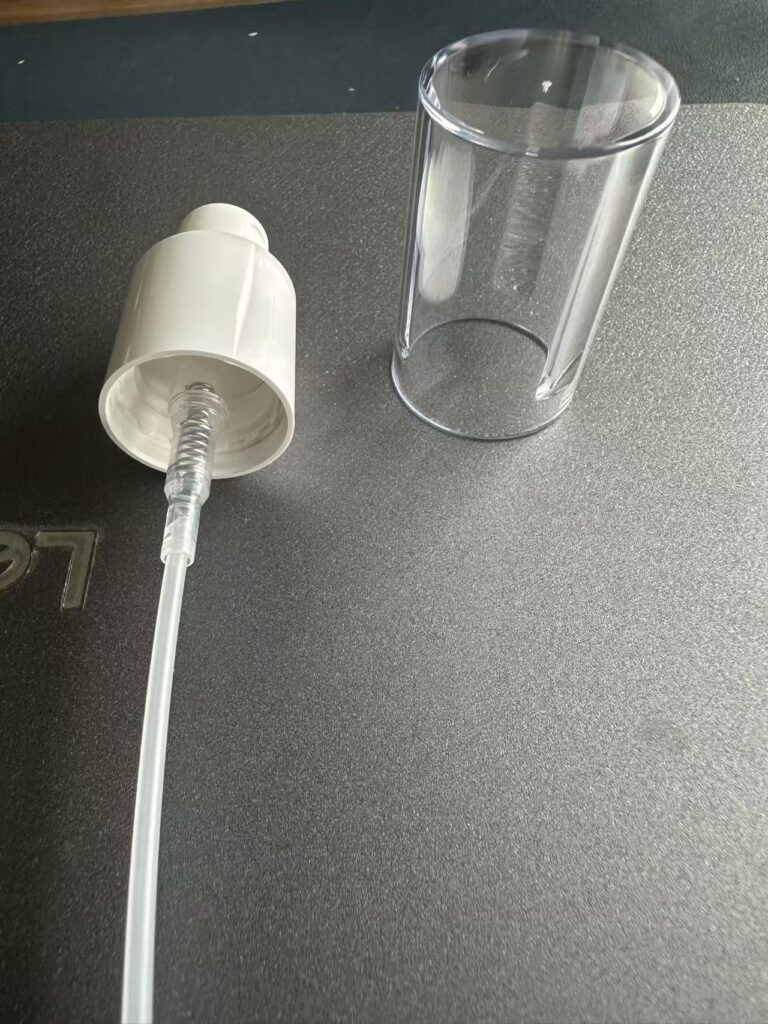

Review this double-layer seal sprayer for your oil-based formula and bottle assembly. Black ribbed and white sample presentations are shown in the photographs. Confirm bottle fit, dispensing behavior and formula compatibility with approved samples.
The owner-confirmed SP-LP-200 section drawing specifies PP for the cap, actuator, upper piston, closure, housing and dip tube; PE for the gasket, lower piston and valve; POM for the nozzle, stem insert and spring seat; and a 304 stainless-steel spring.
The listed dimensions are reference callouts from the September 2026 drawing. Refer to the drawing when reviewing the assembly; the body diameters are not bottle thread designations.
Minimum order: 30,000 pieces. Production lead time: 35–45 days. Confirm color, bottle connection, quantity and sample approval requirements in the quotation.
BUYER INFORMATION
Include the quantity per model, color or finish in your inquiry.
Share your delivery schedule and selected configuration with our team.
Request samples to check dimensions, appearance and performance with your bottle or assembly.
Tell us your destination and packing requirements. Carton details and freight arrangements are confirmed with your quotation.
Confirm the interface drawing and check samples with your bottle or assembly. Matching a nominal size does not guarantee a compatible fit.
Send the product or model, order quantity, dimensions, intended application, preferred finish and destination market. If a specification is not yet decided, our team can help review it.
MOQ is 30,000 pcs. Lead time is 35–45 days. Include your required delivery schedule and customization details in your inquiry.
