Choose Trigger Sprayer Nozzle Modes Without Complicating Use
Evaluate spray, stream, foam and off settings against the task, formula and instructions users will follow.
Read the guide →Image 1 of 1 · Select the image to enlarge.

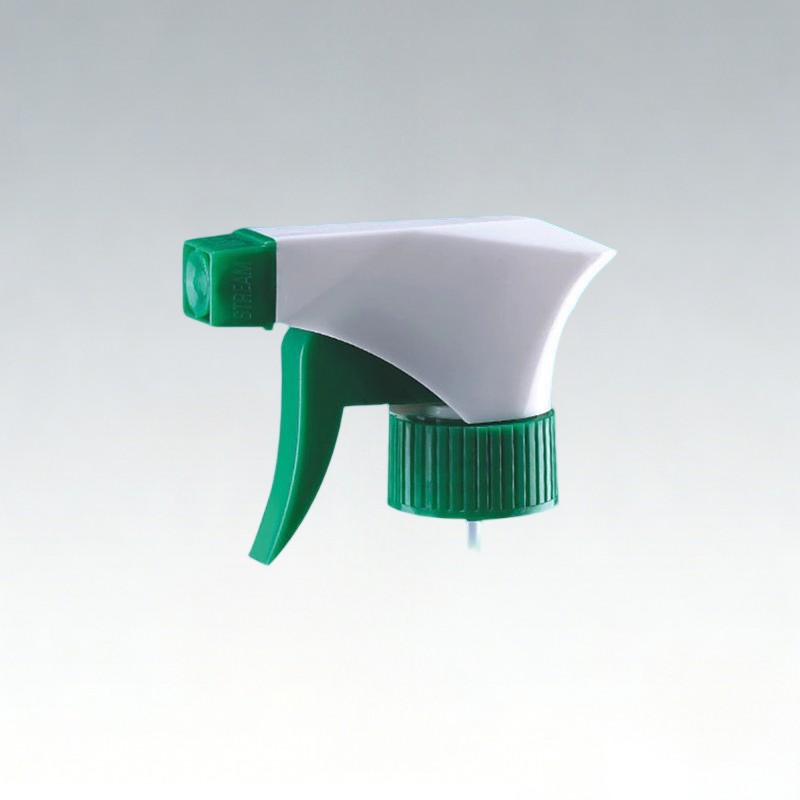

White/Green Adjustable Nozzle Trigger Spraye Manufacturer & Supplier In China
Review the available specifications below and request a quotation or samples for your packaging project.
Dimensions, materials and bottle-fit details are available on request for this model.
MOQ30,000 pcs
Lead time35–45 days
PRODUCT DETAILS
Specifications & product description
Technical Specification Matrix (SP-LP-141)
A specialized 28/410 trigger sprayer featuring an eco-centric green-and-white color palette and a high-precision adjustable nozzle, perfectly suited for botanical nutrients, organic cleaners, and horticultural applications.
| B2B Technical Data | Specification Detail |
| Manufacturer Model | SP-LP-141 (Eco-Series) |
| Material Composition | 100% Recyclable PP Plastic |
| Closure Compatibility | 28/410, 28/400, 28/415 |
| Color Profile | Forest Green / Pearl White |
| Adjustment Modes | Fine Mist, Solid Stream, Off |
| Primary Applications | Horticulture, Organic Cleaning, Pets |
| Supply Availability | Factory Direct / Bulk Wholesale |
Key Features & Technical Specifications
1. Advanced Nozzle Technology
- Three Adjustable Spray Patterns:
- Spray Mode: Fine mist for even coverage (ideal for cleaning and gardening)
- Foam Mode: Rich lather for gentle application (perfect for shampoos and body washes)
- Stream Mode: Concentrated jet for precise targeting (great for spot cleaning and hard-to-reach areas)
- Nozzle Mechanism:
- Durable brass insert with PTFE coating for corrosion resistance
- Smooth toggle switching between patterns without clogging
2. Precision Output & Performance
- Output Volume:
- Consistent 0.9ml per trigger pull (optimized for controlled dispensing)
- Tested at 30-40 PSI for steady pressure
- Dip Tube Options:
- Standard 5/16″ (8mm) diameter with 3/16″ (5mm) internal bore
- Available lengths: 5″ (standard) or 7″ (extended)
3. Durable Construction & Chemical Resistance
- Material Composition:
- High-density polyethylene (HDPE) reservoir with UV stabilizers
- Glass-filled nylon trigger and wand for maximum strength
- BPA-free components for food-safe applications
- Chemical Compatibility:
- Resistant to water-based solutions, mild detergents, and cosmetic formulations
- Not recommended for strong solvents or acidic chemicals
4. Ergonomic & User-Friendly Design
- Color Options:
- White/Green (high-contrast, professional appearance)
- Custom colors available (MOQ applies)
- Neck Thread Compatibility:
- 28/410 (fits most standard spray bottles)
- Fits Bottles:
- HDPE, PET, and glass containers (8oz to 32oz)
Performance Characteristics
| Parameter | Specification |
|---|---|
| Output Volume | 0.9ml per trigger pull |
| Spray Patterns | Spray/Foam/Stream (adjustable) |
| Operating Pressure | 30-40 PSI |
| Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Dip Tube Lengths | 5″ (standard), 7″ (extended) |
| Refill Method | Top-fill via bottle opening |
Applications & Use Cases
Ideal For:
- Personal Care & Cosmetics
- Shampoos, body washes, and liquid soaps (foam mode)
- Toner and astringent application (stream mode)
- Household Cleaning
- Glass cleaners, disinfectants, and multi-surface sprays (spray mode)
- Spot cleaning and stain removal (stream mode)
- Gardening & Horticulture
- Foliar fertilizers and pesticides (spray mode)
- Seedling care and gentle watering (foam mode)
- Food & Beverage Service
- Condiment dispensing (stream mode)
- Beverage carbonation (custom applications)
Not Recommended For:
- Thick creams or gels (>3,000cps viscosity)
- Highly volatile solvents
Packaging & Ordering Information
Bulk Packaging Options:
- 24/inner case, 144/master carton (standard)
- Individual polybag with desiccant (retail packaging)
Customization Services:
- Private labeling (logo printing on reservoir)
- Color matching for brand consistency
- OEM/ODM services (custom nozzle designs)
Lead Time:
- Standard stock items: 35–45 days
- Custom orders: 35–45 days (MOQ applies)
Installation & Maintenance Guide
Proper Installation Steps:
- Verify bottle neck matches 28/410 specifications
- Insert dip tube fully to bottom of container
- Align sprayer threads and tighten by hand
- Test all three spray patterns to ensure proper function
Routine Maintenance:
- Rinse with warm water after each use
- Soak in mild detergent monthly to prevent clogging
- Store upright to prevent dripping
Troubleshooting Tips:
- Clogged nozzle: Remove and clean with warm water or a pin
- Weak output: Check dip tube for blockages or replace O-rings
- Pattern malfunction: Ensure nozzle is fully engaged in desired setting
Why Choose This Sprayer?
- Three-in-One Functionality
- Eliminates the need for multiple sprayers by offering spray, foam, and stream options in one tool
- Precision Dispensing
- The 0.9ml output ensures controlled application, reducing waste and improving efficiency
- Professional Appearance
- The white/green color scheme is ideal for branding in healthcare, cosmetics, and food service industries
- Chemical & UV Resistance
- Durable materials withstand frequent use with mild chemicals and prolonged sun exposure
BUYER INFORMATION
Ordering, lead time & samples
MOQ
30,000 pcs
Include the quantity per model, color or finish in your inquiry.
LEAD TIME
35–45 days
Share your delivery schedule and selected configuration with our team.
SAMPLES
Review the fit
Request samples to check dimensions, appearance and performance with your bottle or assembly.
PACKING & FREIGHT
Quote by destination
Tell us your destination and packing requirements. Carton details and freight arrangements are confirmed with your quotation.
Questions before ordering
Does the stated size guarantee compatibility?
Confirm the interface drawing and check samples with your bottle or assembly. Matching a nominal size does not guarantee a compatible fit.
What should I include in a quotation request?
Send the product or model, order quantity, dimensions, intended application, preferred finish and destination market. If a specification is not yet decided, our team can help review it.
What are the MOQ and lead time?
MOQ is 30,000 pcs. Lead time is 35–45 days. Include your required delivery schedule and customization details in your inquiry.
