Select Trigger Sprayer Output From the Application Task
Compare output, coverage and user effort without treating a larger dose as an automatic upgrade.
Read the guide →Image 1 of 1 · Select the image to enlarge.

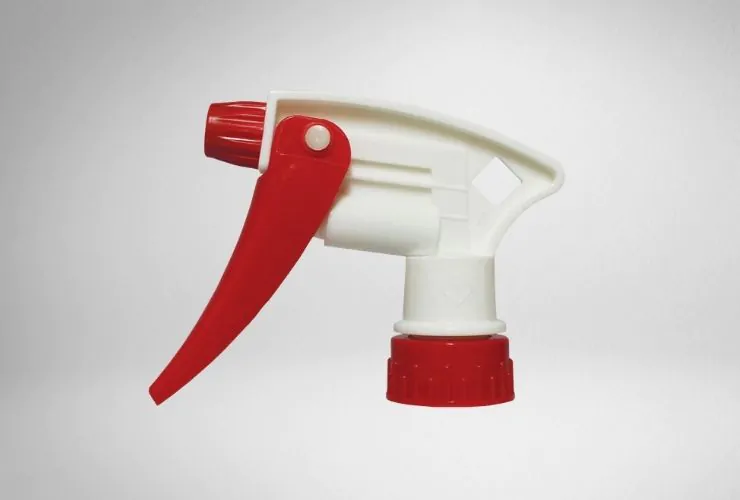

Red/ white Heavy Duty / Output Trigger Sprayer Manufacturer & Supplier In China
Review the available specifications below and request a quotation or samples for your packaging project.
Dimensions, materials and bottle-fit details are available on request for this model.
MOQ30,000 pcs
Lead time35–45 days
PRODUCT DETAILS
Specifications & product description
Technical Specification Matrix (SP-LP-144)
A high-durability 28/410 industrial trigger sprayer featuring a full-grip ergonomic lever and a 3-way adjustable nozzle for high-volume chemical, cleaning, and horticultural applications.
| B2B Technical Data | Specification Detail |
| Manufacturer Model | SP-LP-144 (Standard Series) |
| Material Build | Industrial-Grade PP Plastic |
| Closure Options | 28/410, 28/400, 28/415 |
| Functionality | Adjustable Nozzle (Mist/Stream/Off) |
| Color Configuration | White Body / Red Hardware (Custom Available) |
| Application Scope | Household, Industrial, & Garden |
| Supply Availability | Factory Direct / Bulk Wholesale |
Key Features & Technical Specifications
1. Heavy-Duty Construction & Durability
- Material Composition:
- High-density polyethylene (HDPE) reservoir with UV stabilizers
- Reinforced glass-filled nylon trigger mechanism
- Brass insert in nozzle for corrosion resistance
- Double O-ring seals for leak-proof performance
- Chemical Resistance:
- Compatible with water-based chemicals, mild solvents, and agricultural formulations
- Not recommended for strong acids or highly corrosive substances
2. High-Performance Output
- Output Volume:
- 1.8-2.2ml per trigger pull (25% more than standard sprayers)
- Tested at 40-60 PSI for consistent pressure
- Nozzle Design:
- Adjustable spray patterns (mist, spray, jet)
- Removable tip for easy cleaning and unclogging
3. Dual Dip Tube Options for Deep Reach
- 7.25″ (184mm) Dip Tube:
- Standard length for most 1-gallon to 2.5-gallon containers
- Ensures complete liquid evacuation
- 9.5″ (241mm) Dip Tube:
- Extended length for deep containers (3-gallon to 5-gallon jugs)
- Prevents wastage by reaching bottom liquid
4. Color Customization & Branding
- Standard Colors: Red/White (high-contrast visibility)
- Available Color Options:
- Blue, Green, Yellow, Black, or Custom Colors (MOQ applies)
- Full-color printing or pad printing for branding
- Neck Thread Compatibility:
- 28/410 (fits most standard spray bottles)
Performance Characteristics
| Parameter | Specification |
|---|---|
| Output Volume | 1.8-2.2ml per trigger pull |
| Spray Patterns | Mist/Spray/Jet (adjustable) |
| Operating Pressure | 40-60 PSI |
| Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Dip Tube Options | 7.25″ (standard), 9.5″ (extended) |
| Refill Method | Top-fill via bottle opening |
Applications & Use Cases
Ideal For:
- Agricultural & Horticultural
- Pesticides, herbicides, and fungicides
- Fertilizer and plant growth regulators
- Industrial & Manufacturing
- Degreasers, lubricants, and cleaning solvents
- Surface treatment chemicals
- Commercial Cleaning
- Floor strippers, disinfectants, and sanitizers
- Automotive and fleet maintenance
- Janitorial & Sanitation
- High-volume liquid dispensing for large facilities
Not Recommended For:
- Highly concentrated acids or bases
- Viscous materials (>5,000cps)
Packaging & Ordering Information
Bulk Packaging Options:
- 24/inner case, 144/master carton (standard)
- Individual polybag with desiccant (retail packaging)
Customization Services:
- Private labeling (logo printing on reservoir)
- Color matching for brand consistency
- OEM/ODM services (custom nozzle designs)
Lead Time:
- Standard stock items: 35–45 days
- Custom orders: 35–45 days (MOQ applies)
Installation & Maintenance Guide
Proper Installation Steps:
- Verify bottle neck matches 28/410 specifications
- Insert dip tube fully to bottom of container
- Align sprayer threads and tighten by hand
- Perform test spray to check for leaks
Routine Maintenance:
- Rinse with compatible solvent after each use
- Soak in warm water monthly to prevent clogging
- Store upright to prevent dripping
Troubleshooting Tips:
- Leaking at base: Replace O-rings (part #TR-OR-007)
- Weak spray: Clean nozzle with pin or replace tip
- Dip tube detachment: Use PVC cement for reattachment
Why Choose This Sprayer?
- High-Output Efficiency
- Delivers 25% more liquid per stroke than standard sprayers, reducing fatigue during extended use
- Deep Reach with Dual Dip Tubes
- 7.25″ and 9.5″ options ensure complete liquid evacuation from various container sizes
- Professional Branding Options
- Custom colors and printing enhance product recognition for commercial applications
- Chemical & UV Resistance
- Durable construction withstands harsh chemicals and prolonged sun exposure
BUYER INFORMATION
Ordering, lead time & samples
MOQ
30,000 pcs
Include the quantity per model, color or finish in your inquiry.
LEAD TIME
35–45 days
Share your delivery schedule and selected configuration with our team.
SAMPLES
Review the fit
Request samples to check dimensions, appearance and performance with your bottle or assembly.
PACKING & FREIGHT
Quote by destination
Tell us your destination and packing requirements. Carton details and freight arrangements are confirmed with your quotation.
Questions before ordering
Does the stated size guarantee compatibility?
Confirm the interface drawing and check samples with your bottle or assembly. Matching a nominal size does not guarantee a compatible fit.
What should I include in a quotation request?
Send the product or model, order quantity, dimensions, intended application, preferred finish and destination market. If a specification is not yet decided, our team can help review it.
What are the MOQ and lead time?
MOQ is 30,000 pcs. Lead time is 35–45 days. Include your required delivery schedule and customization details in your inquiry.
