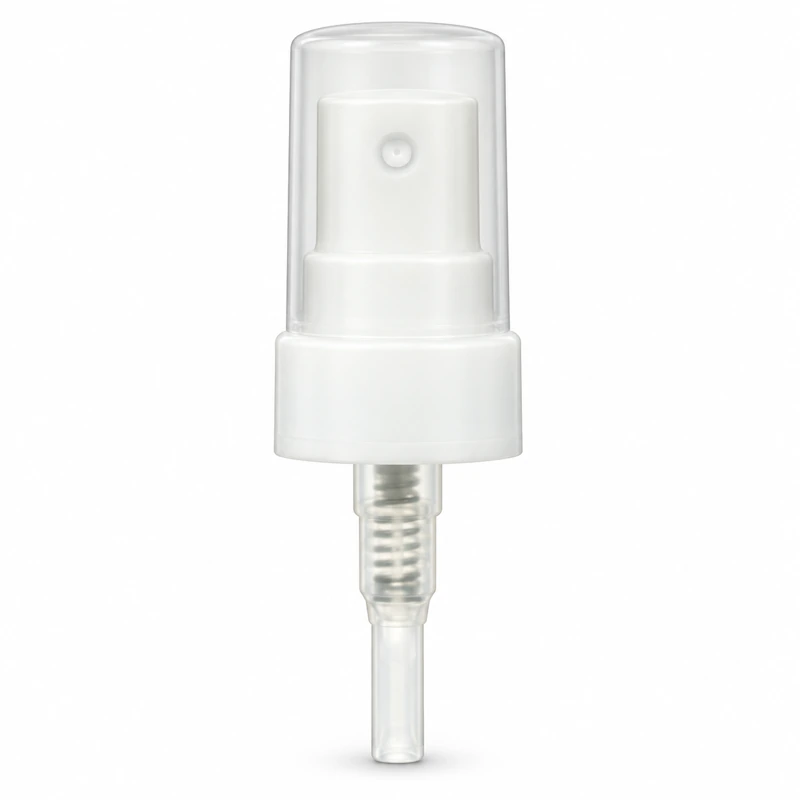

FMA-01 / Reference 15 - 20/400
White sprayer with a ribbed white collar and translucent cap
Catalog marking: 20/400. Confirm complete closure and bottle drawing.
Enquire about this style →Image 1 of 7 · Select the image to enlarge.
MODEL FMA-01 20 mm collection
20 mm Fine Mist Sprayers with Ribbed and Smooth Collars in White, Green and Gold-Tone Finishes
Compare the pictured FMA-01 screw-type fine mist sprayers in this neck group. The collection includes 7 appearance references with the printed neck markings 20/400, 20/400s, 20/410, 20/410s, 20/415, 20/415s.
- Product number
- FMA-01 20 mm collection
- Catalog family
- FMA-01 screw-type fine mist sprayers
- Catalog neck markings
- 20/400, 20/400s, 20/410, 20/410s, 20/415, 20/415s
- Appearance references
- FMA-01 / Reference 15, FMA-01 / Reference 16, FMA-01 / Reference 17, FMA-01 / Reference 18, FMA-01 / Reference 19, FMA-01 / Reference 20, FMA-01 / Reference 21; reference numbers are local image labels, not manufacturer SKU codes
- Construction / caps
- Source describes FMA-01 as all plastic with plastic dustcaps; confirm exact component materials and supplied cap option
- Family output options
- 0.035, 0.05, 0.12, 0.15, 0.2 and 0.4 ml; not individually assigned to these photographs
MOQ30,000 pcs
Lead time35–45 days
STYLE COLLECTION · 7 APPEARANCE REFERENCES
Compare the pictured designs and catalog neck markings
Compare each style below and include its reference in your inquiry.

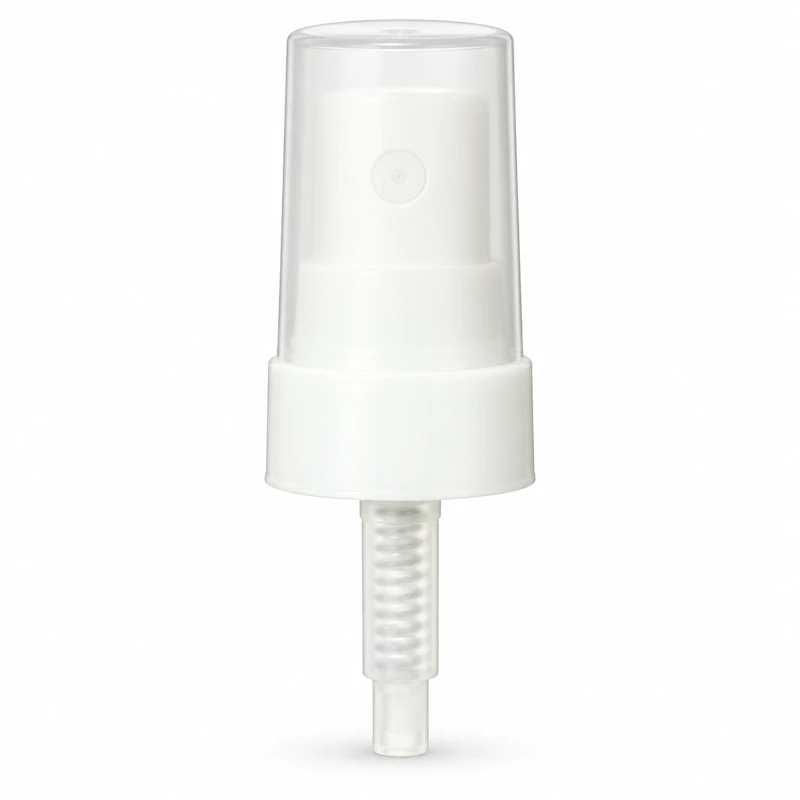

FMA-01 / Reference 16 - 20/400s
White sprayer with a smooth white collar and tall cap
Catalog marking: 20/400s. Catalog suffix s indicates a smooth closure; confirm selected assembly.
Enquire about this style →

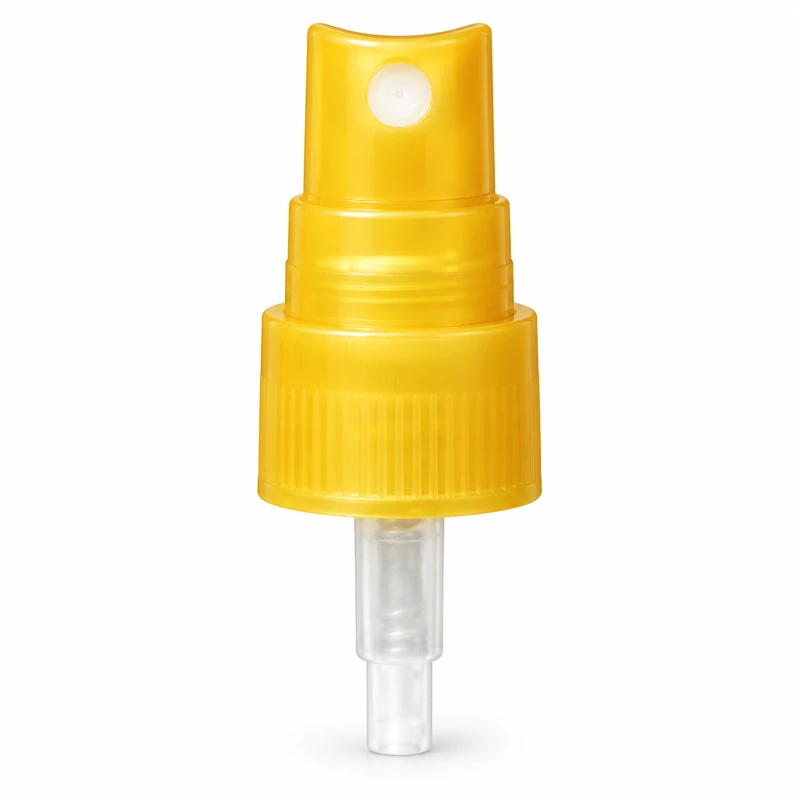

FMA-01 / Reference 17 - 20/410
Golden-yellow uncapped sprayer with a ribbed gold-tone collar
Catalog marking: 20/410. Confirm complete closure and bottle drawing.
Enquire about this style →

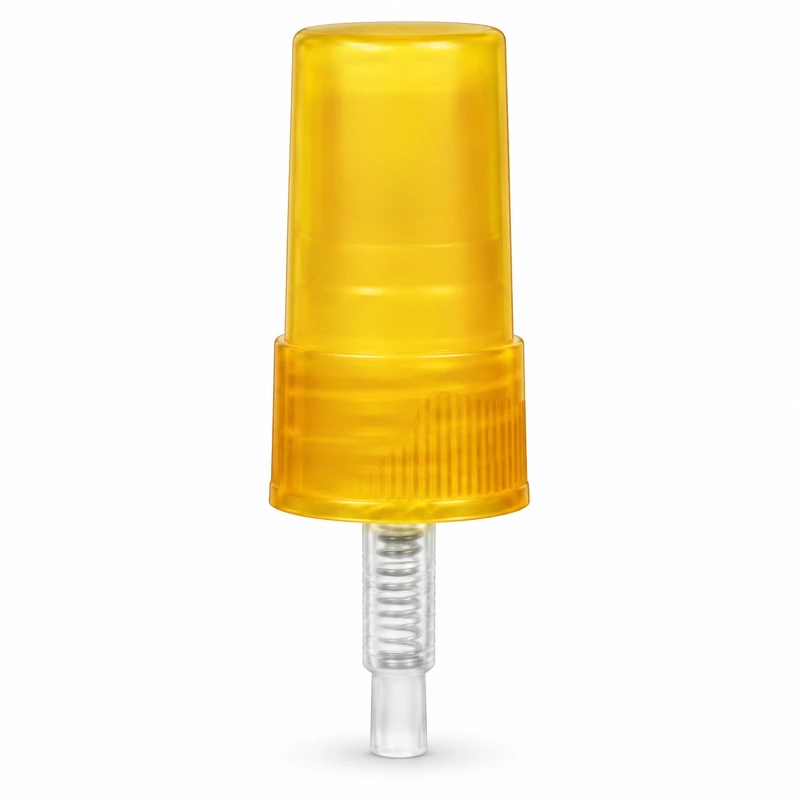

FMA-01 / Reference 18 - 20/410s
Orange-yellow sprayer with a matching orange cap and double-ring ribbed collar
Catalog marking: 20/410s. Catalog suffix s indicates a smooth closure; confirm selected assembly.
Enquire about this style →

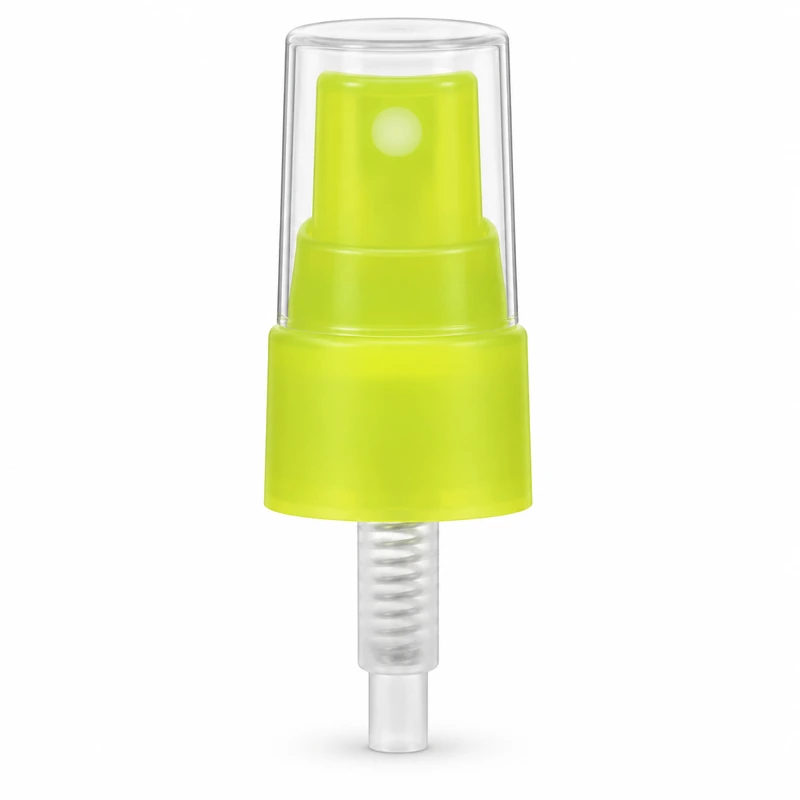

FMA-01 / Reference 19 - 20/410s
Yellow-green sprayer with a clear cap and smooth collar
Catalog marking: 20/410s. Catalog suffix s indicates a smooth closure; confirm selected assembly.
Enquire about this style →
FMA-01 / Reference 20 - 20/415
Dark-gray sprayer with a tall ribbed collar and clear cap
Catalog marking: 20/415. Confirm complete closure and bottle drawing.
Enquire about this style →

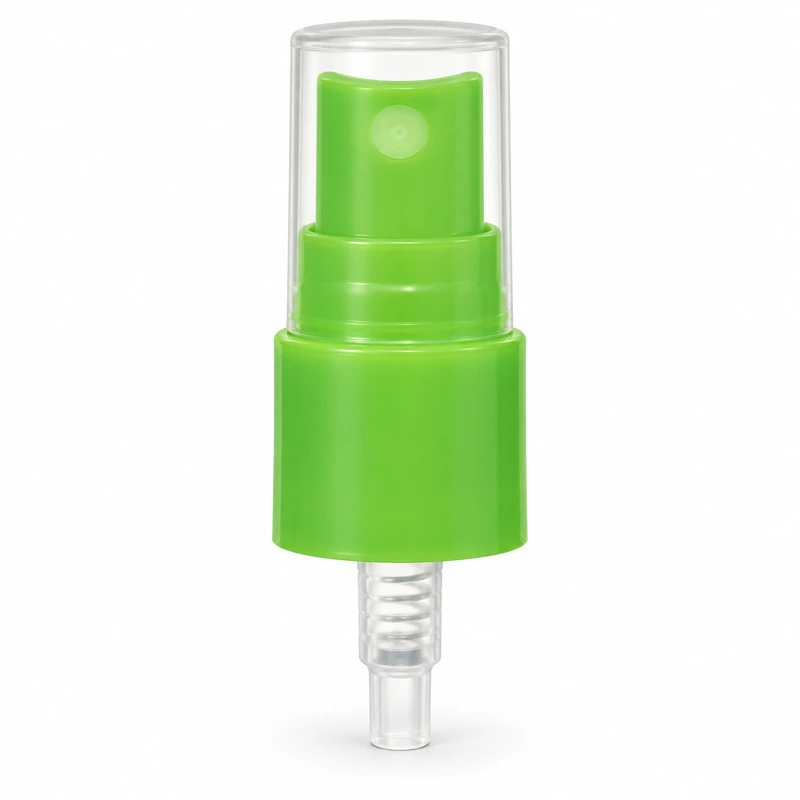

FMA-01 / Reference 21 - 20/415s
Green sprayer with a smooth green collar and clear cap
Catalog marking: 20/415s. Catalog suffix s indicates a smooth closure; confirm selected assembly.
Enquire about this style →Images have been cleaned up from catalog scans for appearance reference. Confirm the exact finish and construction with physical samples before approval.
PRODUCT DETAILS
Specifications & product description
| Specification item | Parameter / detail |
|---|---|
| Model / item no. | FMA-01 20 mm collection |
| Catalog family | FMA-01 screw-type fine mist sprayers |
| Catalog neck markings | 20/400, 20/400s, 20/410, 20/410s, 20/415, 20/415s |
| Appearance references | FMA-01 / Reference 15, FMA-01 / Reference 16, FMA-01 / Reference 17, FMA-01 / Reference 18, FMA-01 / Reference 19, FMA-01 / Reference 20, FMA-01 / Reference 21; reference numbers are local image labels, not manufacturer SKU codes |
| Construction / caps | Source describes FMA-01 as all plastic with plastic dustcaps; confirm exact component materials and supplied cap option |
| Family output options | 0.035, 0.05, 0.12, 0.15, 0.2 and 0.4 ml; not individually assigned to these photographs |
| Closure suffix | s = smooth closure; d = double-wall closure in the source. T is not defined. |
| Dip tube / color | Confirm tube length against the selected bottle and approve actual colors and finishes on samples |
| Minimum order | 30,000 pcs |
| Lead time | 35–45 days |
Review the pictured actuator, collar and cap
Compare the pictured FMA-01 screw-type fine mist sprayers in this neck group. The collection includes 7 appearance references with the printed neck markings 20/400, 20/400s, 20/410, 20/410s, 20/415, 20/415s.
| Local image reference | Catalog neck marking | Pictured design |
|---|---|---|
| FMA-01 / Reference 15 | 20/400 | White sprayer with a ribbed white collar and translucent cap |
| FMA-01 / Reference 16 | 20/400s | White sprayer with a smooth white collar and tall cap |
| FMA-01 / Reference 17 | 20/410 | Golden-yellow uncapped sprayer with a ribbed gold-tone collar |
| FMA-01 / Reference 18 | 20/410s | Orange-yellow sprayer with a matching orange cap and double-ring ribbed collar |
| FMA-01 / Reference 19 | 20/410s | Yellow-green sprayer with a clear cap and smooth collar |
| FMA-01 / Reference 20 | 20/415 | Dark-gray sprayer with a tall ribbed collar and clear cap |
| FMA-01 / Reference 21 | 20/415s | Green sprayer with a smooth green collar and clear cap |
Match the complete bottle interface
The values shown are the neck markings printed below the source photographs. A shared nominal diameter does not make different finishes interchangeable. Review the full bottle-neck drawing, thread engagement, sealing surface, installed height and cap clearance with your selected sample. The source defines s as a smooth closure and d as a double-wall closure; the T suffix is not defined and requires clarification for the selected drawing.
Select the output and component configuration
The source lists 0.035, 0.05, 0.12, 0.15, 0.2 and 0.4 ml as FMA screw-series dosage options. These are family options and are not individually allocated to the pictured references. The page lists PP, PS and K-resin dustcap options and describes FMA-01 as all plastic with plastic dustcaps. Request the actual assembly bill of materials, cap material, wetted components and output specification rather than inferring them from color.
Identify the source family and appearance
This listing is FMA-01, the upper two rows on the source page. It is separate from the previously listed FMA-01OC overcap collection. Reference numbers 01-33 are local image identifiers for this import, not manufacturer model numbers. Select the picture together with its printed neck marking and confirm the supplied cap state.
Review fit and spray behavior with your liquid
Evaluate priming, delivered amount, spray pattern, repeated actuation, leakage and storage compatibility with your intended formula and bottle. Confirm the dip-tube length and cutting method for the actual container. Exterior photographs and cleaned catalog images do not establish dimensions, exact colors, formula suitability or hidden internal construction.
Request a quotation or samples
Send the local image reference, catalog neck marking, bottle drawing, formula type, target output, tube length, cap preference, color, quantity and destination. Standard MOQ is 30,000 pieces and the stated lead time is 35-45 days. Confirm the selected assembly, sample approval and schedule in your quotation.
BUYER INFORMATION
Ordering, lead time & samples
MOQ
30,000 pcs
Include the quantity per model, color or finish in your inquiry.
LEAD TIME
35–45 days
Share your delivery schedule and selected configuration with our team.
SAMPLES
Review the fit
Request samples to check dimensions, appearance and performance with your bottle or assembly.
PACKING & FREIGHT
Quote by destination
Tell us your destination and packing requirements. Carton details and freight arrangements are confirmed with your quotation.
Questions before ordering
Does the stated size guarantee compatibility?
Confirm the interface drawing and check samples with your bottle or assembly. Matching a nominal size does not guarantee a compatible fit.
What should I include in a quotation request?
Send the product or model, order quantity, dimensions, intended application, preferred finish and destination market. If a specification is not yet decided, our team can help review it.
What are the MOQ and lead time?
MOQ is 30,000 pcs. Lead time is 35–45 days. Include your required delivery schedule and customization details in your inquiry.
Request a quote or samples
Share your requirements so we can review the right configuration. You can also email [email protected].
Product: 20 mm Fine Mist Sprayers with Ribbed and Smooth Collars in White, Green and Gold-Tone Finishes
