1. Introduction: The Structural Vulnerability of Conventional Packaging Pumps
In premium aromatherapy, skincare, household cleaning, and automotive maintenance industries, dispensing pump systems dictate both consumer satisfaction and active ingredient shelf-life. Formulations containing botanical essential oils, perfume oils, heavy makeup-removing oils, and highly volatile industrial solvents (such as alcohol-based degreasers, silicone oils, and release agents) present severe chemical challenges: extreme permeability, high swelling capacity, and corrosive interactions with base polymers.
Standard fine mist sprayers relying on a single PE or PP gasket fail rapidly when exposed to these aggressive liquids. Within weeks, three critical failures occur:
- Capillary Leakage: The formulation migrates upward through the capillary gaps between the piston rod and closure, resulting in messy oil accumulation inside the overcap.
- Mechanical Swelling: Traditional elastomeric components undergo severe polymer swelling, which locks the internal piston assembly, rendering the actuator immovable.
- Oxidation Clogging: Compromised sealing mechanics allow oxygen backflow, causing oxidation, crystallization, and eventual nozzle clogging.

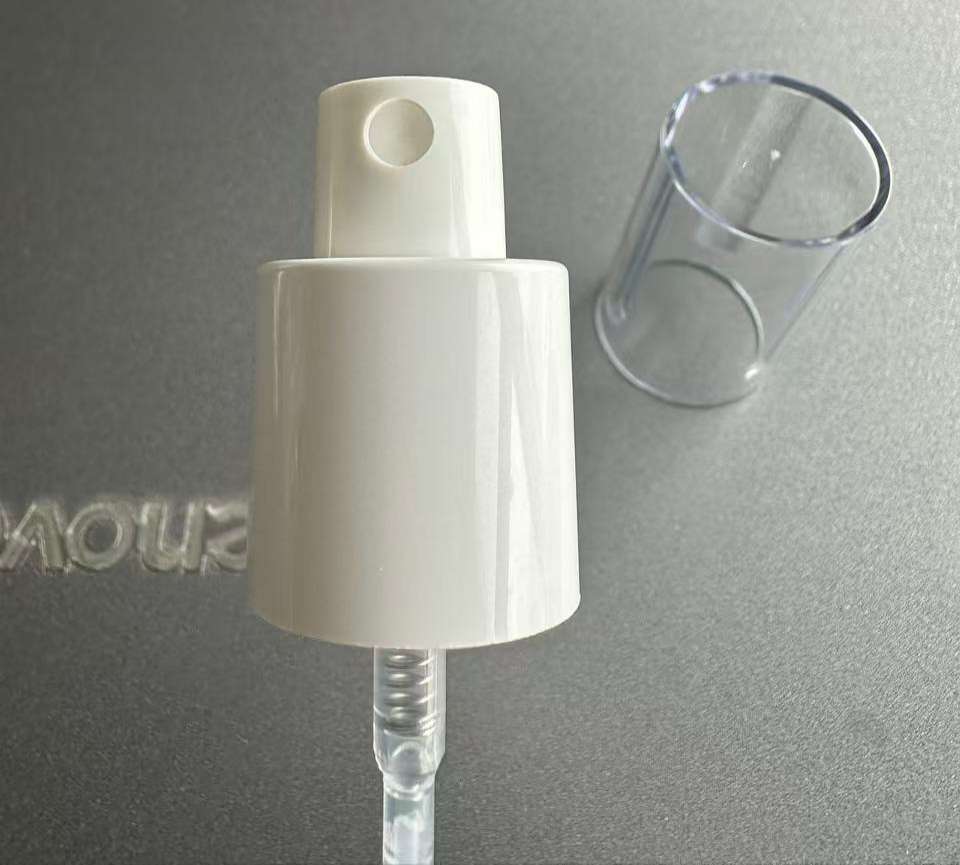

To eliminate these cross-industry engineering pain points, STDPACK has introduced the next-generation Double-Layer Dual-Action Seal Oil-Resistant Fine Mist Pump.
2. Core Engineering: The Mechanics of Dual-Barrier Protection
The technological edge of the STDPACK oil-resistant pump lies in its decoupled geometric architecture: an inner chemically-inert structural core and an outer mechanical fluid-lock. This system divides chemical resilience and structural fluid containment into two distinct operational barriers:
- Barrier I: Inner Chemical Core (High-Density FKM / Viton Inner Plug) Positioned at the direct fluid contact interface within the pump chamber, the inner plug is molded from high-density Fluoropolymer elastomers (FKM / Viton). The incorporation of fluorine atoms into the polymer backbone provides peerless chemical inertness. FKM maintains a near-zero swelling ratio when subjected to concentrated terpenes, aromatic hydrocarbons, and lipophilic solvents. This micron-tolerance component prevents fluid from disrupting the mechanical drive chamber, ensuring long-term actuation precision without structural degradation.

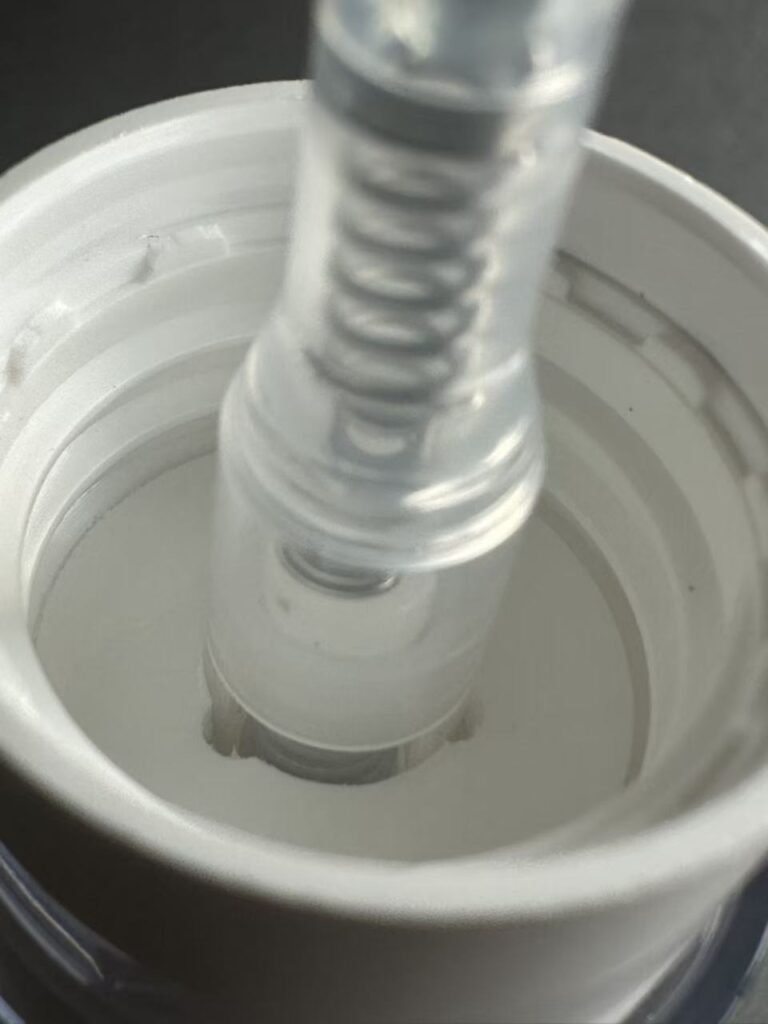

- Barrier II: Outer Mechanical Lock (High-Rigidity PE/PP Double-Lip Ring) Located at the critical intersection of the actuator stem and the threaded closure, this secondary barrier features an engineered double-lip profile. Molded from high-tensile, modified Polyethylene (PE) or Polypropylene (PP), the dual lips utilize continuous mechanical tension to tightly wrap the moving piston rod. As the user depresses the actuator, the double-lip configuration wipes the stem surface, cutting off any capillary migration of oil, ensuring zero leakage and a completely dry overcap interior.
3. Five Core Performance Metrics of the Double-Layer Sprayer
- Zero-Leakage Integrity Under Stress: Validated through strict negative-pressure vacuum testing and high-low temperature thermal cycling, our dual-barrier engineering ensures zero fluid migration or “sweating” during long-term storage or high-vibration international logistics.
- Ultra-Consistent, Micro-Droplet Atomization: The stabilized hydraulic pressure inside the pump chamber ensures an exact discharge volume (engineered at
0.12cc - 0.16cc / stroke). The premium orifice shear-inserts split high-viscosity lipophilic liquids into ultra-fine micro-droplets without streaming, spitting, or droplet agglomeration. - Broad Spectrum Chemical Compatibility: The internal components resist degradation from pure plant oils, complex perfume blends, synthetic silicone fluids, aggressive degreasers, and botanical sanitizers without cracking, softening, or embrittlement.
- Extended Mechanical Fatigue Life: Safely shielded by the double-layer seals, the high-tensile internal spring (available in SUS304 or SUS316L) remains completely isolated from aggressive chemical contact, guaranteeing hundreds of thousands of cycles without spring fatigue or fluid discoloration.
- Optimized for Rigorous B2B Packaging Standards: Specifically engineered for applications where conventional single-seal dispensers fail, this pump provides global brands with a reliable, repeatable, and premium delivery system.
4. Industry-Wide Application Mapping
| Industry Sector | Target Formulations & Media | Critical Problem Solved |
| Aromatherapy & Perfumery | Pure essential oils, synergy blends, highly concentrated diffuser oils, perfume oils, hair oils. | Prevents active ingredient evaporation and creeping leaks; maintains ultra-fine mist dispersion. |
| Cosmetics & Personal Care | Heavy face cleansing oils, body oils, lipophilic serums, moisturizing bi-phase oil sprays. | Stops oil creep and greasy residue accumulation under the overcap, keeping premium retail packaging pristine. |
| Industrial & Automotive | Anti-rust oils, spray lubricants, silicone-based mold release agents, concentrated fuel additives. | Enables micro-dose spraying instead of wasteful bulk pouring, preventing solvent-induced actuator failure. |
| Household & Sanitation | High-strength eco-degreasers, heavy oil removers, oily sanitizing fluids, botanical insect repellents. | Eliminates internal spring corrosion and structural seizing caused by continuous chemical exposure. |
5. Technical Specifications & Customization Parameters
- Neck Finish Options:
20/410(Available in ribbed, smooth, or metal-sheathed options) - Discharge Output Rate:
0.12cc per stroke(Calibrated precisely based on liquid viscosity) - Seal Material Architecture: Inner Plug: Fluoropolymer (FKM / Viton) / Premium NBR; Outer Ring: Engineered High-Density PP / HDPE
- Spring Mechanisms: Standard Internal Spring (SUS304 / SUS316L) or External Spring Structure (Fluid pathway completely isolated from metal components to eliminate any trace metal ion or discoloration risk)
- Overcap Specifications: Shipped with high-clarity, rigid AS or PC dust caps ensuring a high-friction mechanical snap-lock
- Dip Tube Configurations: Customized lengths in high-transparency PE with straight-cut, V-cut, or side-notch fluid intakes
6. Conclusion
When dealing with highly permeable, lipophilic, and chemically aggressive formulations, compromise in primary packaging mechanics is not an option. STDPACK’s Double-Layer Seal Oil-Resistant Fine Mist Sprayer successfully bridges the gap between molecular-level material resilience and macromolecular mechanical precision. By choosing our dual-barrier technology, global brands protect their liquid assets, lower product failure rates, and deliver an uncompromised, premium sensory experience to the end-user.
Contact the STDPACK engineering team today to request complimentary validation samples, material compatibility data sheets, and custom quote structures for your product portfolio.
