Reference 05 · 20/400
Black treatment pump with ribbed collar and clear overcap
Catalog marking: 20/400. Shown with translucent overcap. Exact output and supplied cap material require confirmation.
Enquire about this style →Image 1 of 4 · Select the image to enlarge.
MODEL CR-01 20mm collection
20 mm Cream Treatment Pumps with Ribbed, Smooth and Paddle-Top Designs
Compare four pictured configurations: a black ribbed-collar 20/400, pink smooth-collar 20/410s, uncapped pink paddle-actuator 20/410 and blue ribbed-collar 20/415.
- Product number
- CR-01 20mm collection
- Product family
- CR-01 cream / treatment pumps
- Catalog neck markings
- 20/400; 20/410s; 20/410; 20/415
- Appearance references
- 05, 06, 07, 08
- Catalog construction
- All-plastic family; confirm the selected component specification
- Pictured cap configuration
- Reference 05: shown with translucent overcap; Reference 06: shown with translucent overcap; Reference 07: shown uncapped; Reference 08: shown with translucent overcap
MOQ30,000 pcs
Lead time35–45 days
STYLE COLLECTION · 4 APPEARANCE REFERENCES
Compare the 4 pictured references
Compare each style below and include its reference in your inquiry.

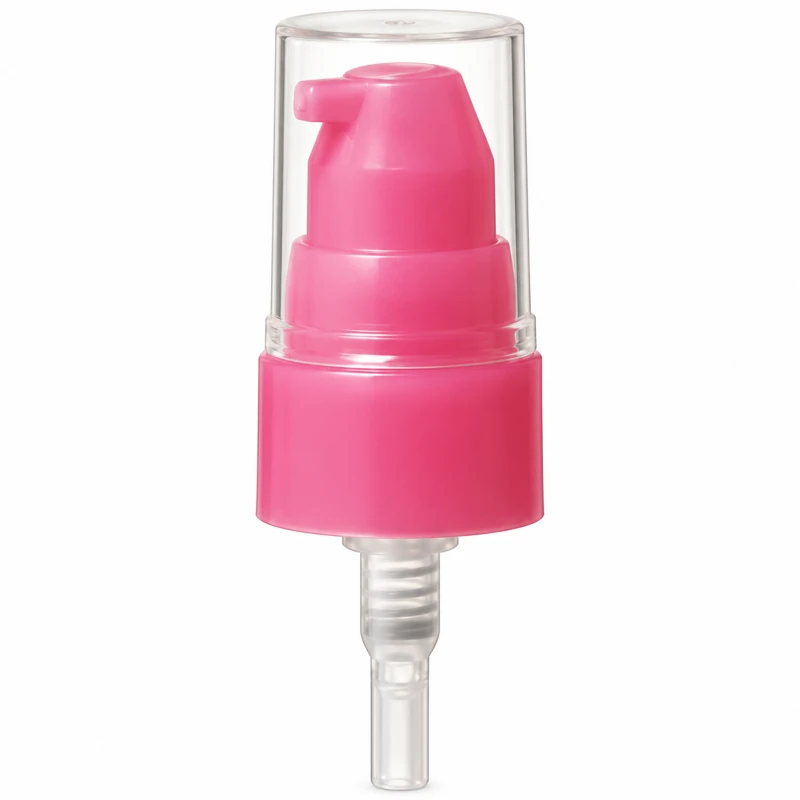

Reference 06 · 20/410s
Pink treatment pump with smooth collar and clear overcap
Catalog marking: 20/410s. Shown with translucent overcap. Exact output and supplied cap material require confirmation.
Enquire about this style →

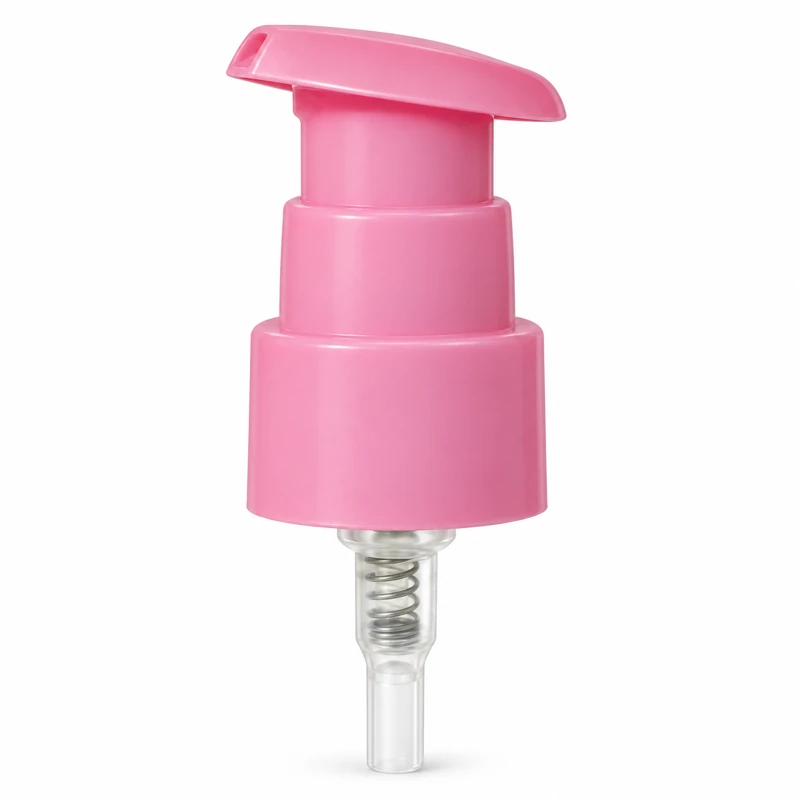

Reference 07 · 20/410
Uncapped pink treatment pump with broad sloped actuator
Catalog marking: 20/410. Shown uncapped. Exact output and supplied cap material require confirmation.
Enquire about this style →

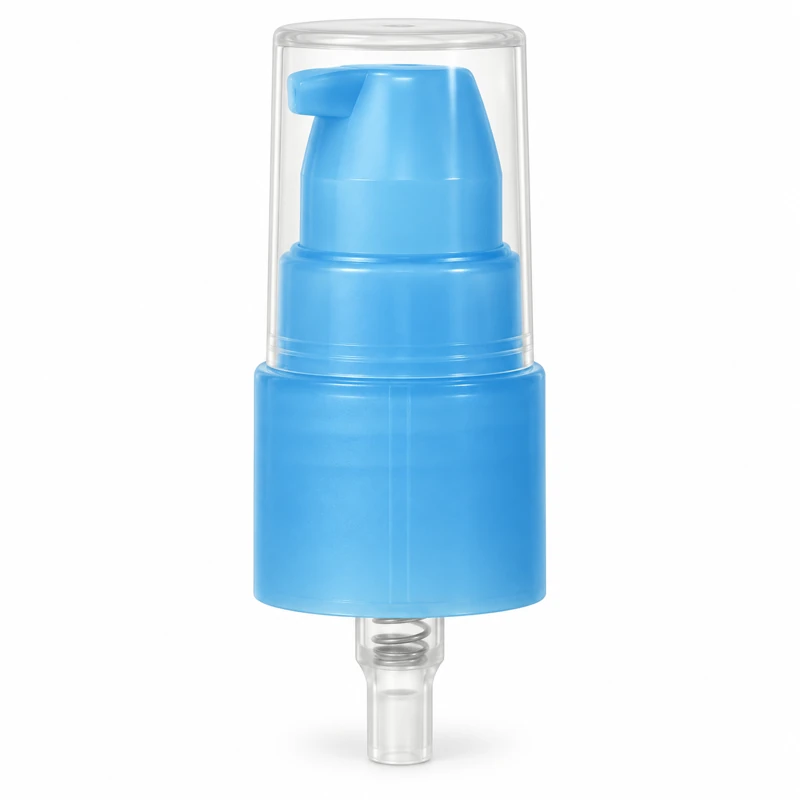

Reference 08 · 20/415
Blue treatment pump with ribbed collar and clear overcap
Catalog marking: 20/415. Shown with translucent overcap. Exact output and supplied cap material require confirmation.
Enquire about this style →Images have been cleaned up from catalog scans for appearance reference. Confirm the exact finish and construction with physical samples before approval.
PRODUCT DETAILS
Specifications & product description
| Specification item | Parameter / detail |
|---|---|
| Model / item no. | CR-01 20mm collection |
| Product family | CR-01 cream / treatment pumps |
| Catalog neck markings | 20/400; 20/410s; 20/410; 20/415 |
| Appearance references | 05, 06, 07, 08 |
| Catalog construction | All-plastic family; confirm the selected component specification |
| Pictured cap configuration | Reference 05: shown with translucent overcap; Reference 06: shown with translucent overcap; Reference 07: shown uncapped; Reference 08: shown with translucent overcap |
| Family output options | 0.2 / 0.4 / 0.65 ml; exact output per reference requires confirmation |
| Family overcap options | PP / PS / K-resin; confirm material and availability for selected assembly |
| Dip tube / wetted parts | Confirm tube length, internal materials and formula compatibility |
| Minimum order | 30,000 pcs |
| Lead time | 35–45 days |
Compare the pictured cream pump configurations
Compare four pictured configurations: a black ribbed-collar 20/400, pink smooth-collar 20/410s, uncapped pink paddle-actuator 20/410 and blue ribbed-collar 20/415.
| Catalog reference | Original neck marking | Pictured design | Overcap state |
|---|---|---|---|
| 05 | 20/400 | Black treatment pump with ribbed collar and clear overcap | Shown with translucent overcap |
| 06 | 20/410s | Pink treatment pump with smooth collar and clear overcap | Shown with translucent overcap |
| 07 | 20/410 | Uncapped pink treatment pump with broad sloped actuator | Shown uncapped |
| 08 | 20/415 | Blue treatment pump with ribbed collar and clear overcap | Shown with translucent overcap |
Keep the complete neck specification
The catalog explains the s suffix as a smooth closure. Keep the suffix in the selected reference when requesting a quotation. The nominal diameter groups these references for browsing; it does not establish bottle compatibility. Provide the neck drawing or bottle sample and confirm the closure engagement, sealing surface and installed pump height. Check overcap clearance and cut the dip tube to the approved bottle geometry.
Select the dose and formula together
The supplied cream/treatment-pump section lists 0.2, 0.4 and 0.65 ml output options across the family. It does not assign an individual dose to each pictured reference. Tell us your target dose, intended cream, serum or other formula and filling conditions so the selected assembly can be reviewed. Evaluate priming, delivered amount, actuation, shut-off and leakage using the actual formula and bottle; appearance does not confirm suitability for a particular viscosity.
Confirm construction, cap and appearance
The catalog describes CR-01 as an all-plastic family. This family description does not establish every internal component material or a metal-free fluid path. Ask for the selected assembly specification, including wetted parts and spring arrangement. The wider cream-pump section lists PP, PS and K-resin dustcap options, with or without a cap; confirm the material and availability for your reference. The cleaned scan images are appearance references. Approve the exact color, finish, actuator and cap with physical samples.
What to send for a quotation
Include the catalog reference, complete neck marking or drawing, required output, formula details, bottle height, dip-tube length, cap preference, color, quantity per configuration and destination. MOQ is 30,000 pieces and the stated lead time is 35–45 days. Confirm the sample approval schedule, packaging and delivery requirements with your quotation.
BUYER INFORMATION
Ordering, lead time & samples
MOQ
30,000 pcs
Include the quantity per model, color or finish in your inquiry.
LEAD TIME
35–45 days
Share your delivery schedule and selected configuration with our team.
SAMPLES
Review the fit
Request samples to check dimensions, appearance and performance with your bottle or assembly.
PACKING & FREIGHT
Quote by destination
Tell us your destination and packing requirements. Carton details and freight arrangements are confirmed with your quotation.
Questions before ordering
Does the stated size guarantee compatibility?
Confirm the interface drawing and check samples with your bottle or assembly. Matching a nominal size does not guarantee a compatible fit.
What should I include in a quotation request?
Send the product or model, order quantity, dimensions, intended application, preferred finish and destination market. If a specification is not yet decided, our team can help review it.
What are the MOQ and lead time?
MOQ is 30,000 pcs. Lead time is 35–45 days. Include your required delivery schedule and customization details in your inquiry.
