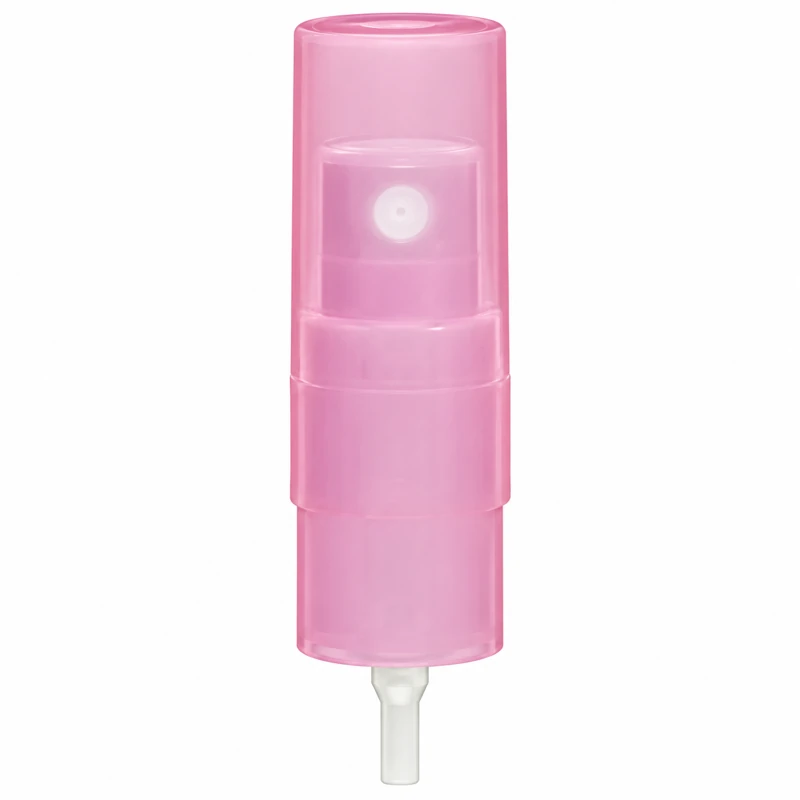

Reference 01 · 13/415s
Pink translucent overcap and pink sprayer
Catalog marking: 13/415s. Smooth closure (catalog suffix s).
Enquire about this style →Image 1 of 2 · Select the image to enlarge.
MODEL FMA-01OC 13 mm collection
13 mm Fine Mist Sprayers with Pink and White Overcap Designs
Two narrow capped references with pink and white appearances. Reference 01 carries the smooth-closure suffix s; reference 02 is marked 13/415.
- Product number
- FMA-01OC 13 mm collection
- Product family
- FMA-01OC screw-type fine mist sprayers
- Nominal neck group
- 13 mm; verify complete finish
- Catalog neck markings
- 13/415 and 13/415s
- Appearance references
- 01, 02
- Construction / overcap options
- All-plastic family; PS / PP overcap options; confirm selected assembly
MOQ30,000 pcs
Lead time35–45 days
STYLE COLLECTION · 2 APPEARANCE REFERENCES
Compare the 2 pictured references
Compare each style below and include its reference in your inquiry.

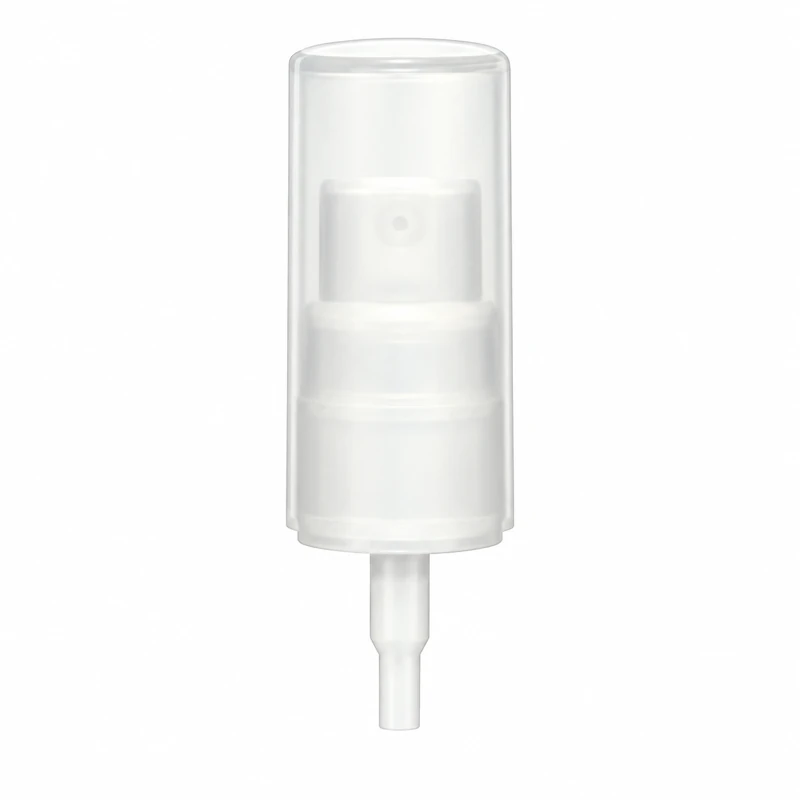

Reference 02 · 13/415
White sprayer beneath a milky translucent overcap
Catalog marking: 13/415. Confirm selected closure construction.
Enquire about this style →Images have been cleaned up from catalog scans for appearance reference. Confirm the exact finish and construction with physical samples before approval.
PRODUCT DETAILS
Specifications & product description
| Specification item | Parameter / detail |
|---|---|
| Model / item no. | FMA-01OC 13 mm collection |
| Product family | FMA-01OC screw-type fine mist sprayers |
| Nominal neck group | 13 mm; verify complete finish |
| Catalog neck markings | 13/415 and 13/415s |
| Appearance references | 01, 02 |
| Construction / overcap options | All-plastic family; PS / PP overcap options; confirm selected assembly |
| Output and dip tube | Confirm for the selected reference and bottle |
| Minimum order | 30,000 pcs |
| Lead time | 35–45 days |
Compare the pictured 13 mm references
Two narrow capped references with pink and white appearances. Reference 01 carries the smooth-closure suffix s; reference 02 is marked 13/415.
| Catalog appearance reference | Neck marking | Pictured appearance | Closure note |
|---|---|---|---|
| 01 | 13/415s | Pink translucent overcap and pink sprayer | Smooth closure (catalog suffix s) |
| 02 | 13/415 | White sprayer beneath a milky translucent overcap | Confirm selected closure construction |
Match the finish and closure design
The shared nominal diameter does not make the pictured assemblies interchangeable. Confirm the complete neck drawing, closure construction and required overcap before sample approval.
Family construction and output selection
The supplied catalog identifies FMA-01OC as an all-plastic family with PS and PP overcap options. Confirm the specific component materials and cap supplied for your reference. The wider FMA family lists 0.035, 0.05, 0.12, 0.15, 0.2 and 0.4 ml output options, but does not assign an individual output to these pictures. Include your required output in the sample brief rather than assuming it from appearance.
Prepare a sample brief
Send the reference number, complete bottle neck drawing, intended liquid, required output, dip-tube length, color, overcap preference, order quantity and destination. Check fit, priming, spray behavior, sealing and transport with your actual bottle and formula. The nominal 13 mm grouping is a selection aid; approve the selected assembly drawing and samples before production.
BUYER INFORMATION
Ordering, lead time & samples
MOQ
30,000 pcs
Include the quantity per model, color or finish in your inquiry.
LEAD TIME
35–45 days
Share your delivery schedule and selected configuration with our team.
SAMPLES
Review the fit
Request samples to check dimensions, appearance and performance with your bottle or assembly.
PACKING & FREIGHT
Quote by destination
Tell us your destination and packing requirements. Carton details and freight arrangements are confirmed with your quotation.
Questions before ordering
Does the stated size guarantee compatibility?
Confirm the interface drawing and check samples with your bottle or assembly. Matching a nominal size does not guarantee a compatible fit.
What should I include in a quotation request?
Send the product or model, order quantity, dimensions, intended application, preferred finish and destination market. If a specification is not yet decided, our team can help review it.
What are the MOQ and lead time?
MOQ is 30,000 pcs. Lead time is 35–45 days. Include your required delivery schedule and customization details in your inquiry.
Request a quote or samples
Share your requirements so we can review the right configuration. You can also email [email protected].
Product: 13 mm Fine Mist Sprayers
